Ipevo VZ-X Wireless HDMI/USB Dual Mode 8MP Document Camera
Direct HDMI projection to TV and projector.
No computer required.
VZ-R HDMI/USB Dual Mode 8MP Document Camera captures all your material???documents, textbooks, artwork, devices and 3D objects???and streams real-time images directly to your TV. It is also compatible with most projectors and monitors with an HDMI input.
Note: VZ-R needs to be powered on when used in HDMI mode. You can plug it into a wall outlet using any of your phone or tablet 5V/1A USB power adapter, or, connect it to a powered USB port of your TV, projector or computer. A power bank will work too.
Compatible with different software in USB mode.
One document camera, many uses.
Use VZ-R in its *USB mode with a computer (Mac, Windows PC or Chromebook) via USB when an HDMI connection is not available. You can then project real-time images to a large screen through a projector connected to your computer. When in USB mode, VZ-R is compatible with a variety of software, allowing you to use it in different ways.
You may use it with our newly developed IPEVO Visualizer software that features an intuitive UI and borderless window display to present student work, or, create flipped classroom videos with video recording software such as Camtasia or OBS. Additionally, you can even double it up as a webcam for online meetings, video conferencing or remote teaching when used with video conferencing software such as GoToMeeting, Skype or Google Hangouts.
*VZ-R features a built-in microphone that is only functional in USB mode.
Capture stunning details with 8 MP camera.
Be surprised at what you see.
Place your material under VZ-R, capture details you wish to show to your audience using its 8 MP camera, and be surprised at how crisp and clear the images are! A range of high definition resolutions is available for your different needs.
With VZ-R’s 8MP camera, every detail remains crisp and clear!
Performance boost with Sony CMOS image sensor and Ambarella SoC.
Fast focus, low noise, excellent color reproduction.
With a Sony CMOS image sensor and a powerful Ambarella integrated system-on-a-chip (SoC), you’ll find enhanced performance in areas of focusing speed, noise reduction under low-light conditions and reproduction of colors as compared with previous models of IPEVO doc cams. This lets you teach or present with lesser disruptions, distortions and latency even in dimly lit environments.
Glass fiber reinforced stand.
Stronger yet lighter.
Inside VZ-R’s stand, you’ll find a type of glass fiber reinforced thermoplastic???GVX-5H (developed by the Swiss company EMS-GRIVORY). Having the strength of metal yet lightweight than most, GVX-5H has been widely used to replace metal components in many different applications. With it, you’ll enjoy increased durability as VZ-R is less likely to break from heavy daily usage. And talking about lightweight, you’ll appreciate VZ-R’s portability as it only weighs 2.2 lbs (1 kg)???perfect for swapping between classrooms or conference rooms!
Swiveling head and multi-jointed stand.
Capture from different height, angle and orientation.
With a swiveling head and strengthened multi-jointed stand, you’re free to position VZ-R at different heights, angles and various orientations for capturing your material.
VZ-R’s small footprint allows you to do more with a limited amount of space. Its base won’t take up too much of your desk, and the unit can be folded together and transported between classrooms, home or office.
To reduce packaging footprint, VZ-R’s base is not attached to its stand right out of the box. Watch this video to learn how to attach the base.Watch the Video
Built-in LED light.
Light up when you need it.
VZ-R features a built-in LED light that gives you additional illumination for capturing material in dimly lit environments. It is ideal for use in classrooms or conference rooms that don’t have adequate lighting.

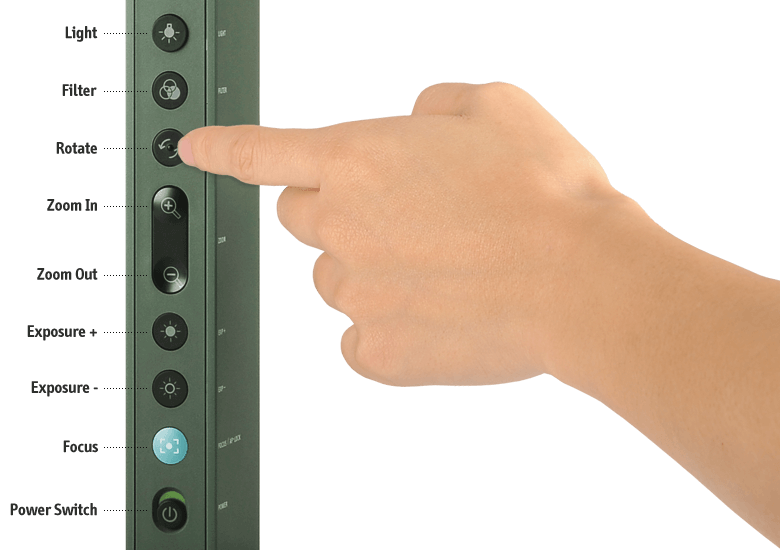

Image adjustments at your fingertips.
Capture the perfect image easily.
Adjust the real-time images instantly to better fit your needs using the buttons conveniently located on VZ-R. You can rotate, apply video filters, adjust exposure, refocus, and do much more. Plus, as each of the buttons has a unique set of tactile indicator on them, you can easily differentiate them with just a touch.
- 8.0 Megapixel camera
- High definition resolutions???up to 3264 x 2448 (USB mode), and up to 1920 x 1080 (HDMI mode)
- Full autofocus lens
- Up to 30 fps live video streaming at 1920 x 1080
- HDMI output
- USB output???USB 2.0 Video Class (UVC) interface
- Mac, Windows PC & Chromebook compatible
- Max shooting area:
10.6” x 18.9” (270 x 480mm) [16:9]
13.5” x 18.1” (344 x 460mm) [4:3]
- D x W x H (when folded):
With base???4.1” x 4.2” x 11.8” (10.5 x 10.8 x 30.1cm)
Without base???3.1” x 1.5” x 11.4” (7.8 x 4.0 x 29.0cm)
- Weight: 2.2lbs (1.0kg)
- USB cable length: 4.9ft (150cm)
- Color: Green
- Model name: CDVH-01IP
